Sumitomo

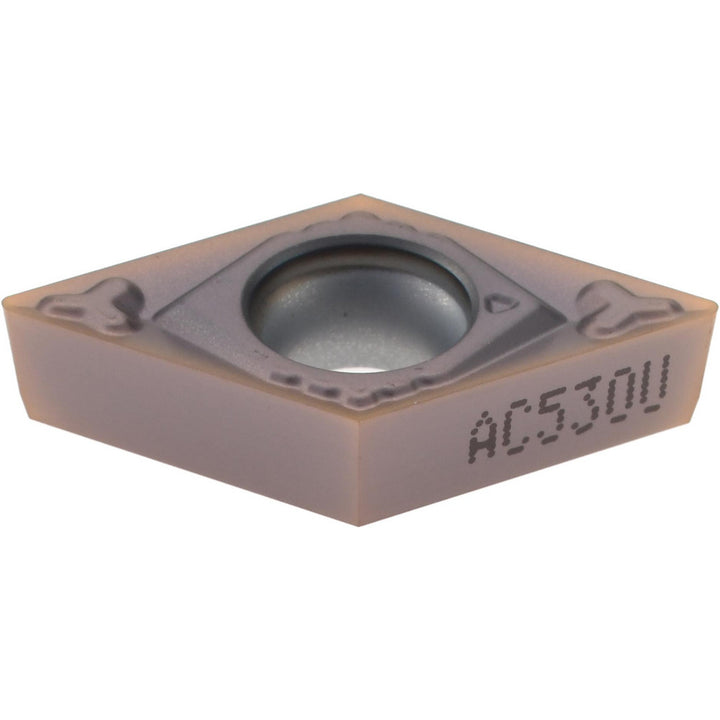

DCGT11T304N-FC Carbide Insert, Grade AC530U, TiAlN - Sumitomo 1NHM933
MFR# 1NHM933ISO/ANSI# DCGT11T304N-FCSeries DC
$16.11List $20.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC530U
MaterialCarbide
CoatingTiAlN
Description
The Sumitomo 1NHM933 is a DCGT11T304N-FC carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Chip breakerEFC
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T304N-FC
Manufacturer gradeAC530U
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeG
