Sumitomo

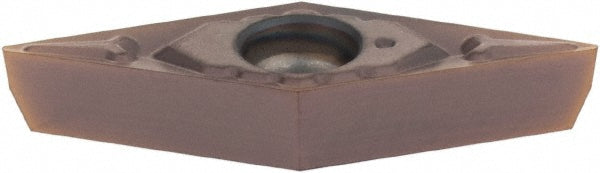

VCGT110302N-FC Solid Carbide Insert, Grade AC530U, TiAlN - Sumitomo 1NHM935
MFR# 1NHM935ISO/ANSI# VCGT110302N-FCSeries VC
$14.63List $18.77
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC530U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 1NHM935 is a VCGT110302N-FC solid carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Ansi codeVCGT220.5EFC
Chip breakerEFC
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0078
Hole diameter0.1340
Included angle35.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4370
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code220.5
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT110302N-FC
Manufacturer gradeAC530U
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeG
