CCGT09T304N-FC Carbide Insert, Grade AC530U, TiAlN - Sumitomo 1NHM939

Sumitomo

CCGT09T304N-FC Carbide Insert, Grade AC530U, TiAlN - Sumitomo 1NHM939

MFR# 1NHM939ISO/ANSI# CCGT09T304Series CC

$11.79List $15.11 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeAC530U
MaterialCarbide
CoatingTiAlN

Description

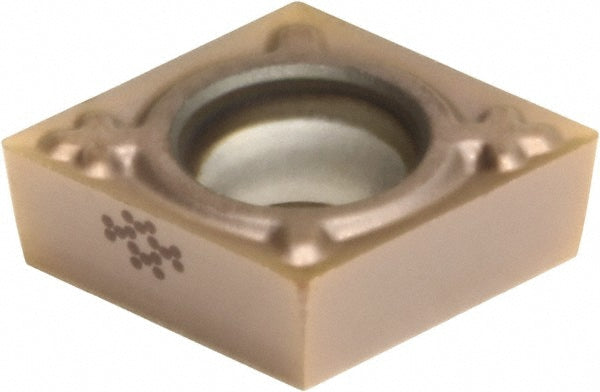

The Sumitomo 1NHM939 is a CCGT09T304N-FC carbide indexable insert, grade AC530U, TiAlN coated.

Specifications

Ansi insert codeCCGT32.51
Ansi size code32.51
Chip breakerEFC
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T304N-FC
Iso insert codeCCGT09T304
Iso size code09T304
Manufacturer gradeAC530U
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeG
