Sumitomo

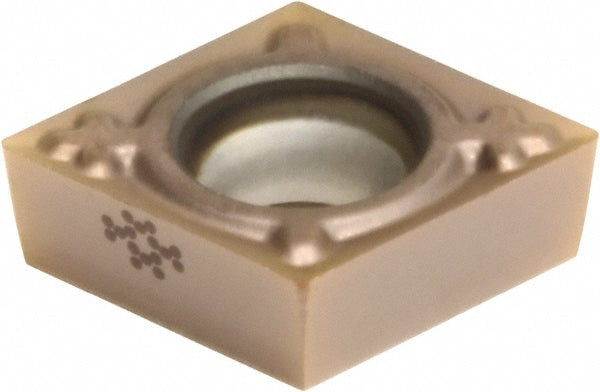

CCGT060204N-FC Solid Carbide Insert, Grade AC530U, TiAlN - Sumitomo 1NHM946
MFR# 1NHM946ISO/ANSI# CCGT060204N-FCSeries CC
$11.68List $14.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC530U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 1NHM946 is a CCGT060204N-FC solid carbide indexable insert, grade AC530U, TiAlN coated.
Specifications
Ansi codeCCGT21.51EFC
Chip breakerEFC
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2520
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060204N-FC
Manufacturer gradeAC530U
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel
StandardsANSI; ISO 13399
Tolerance codeG
