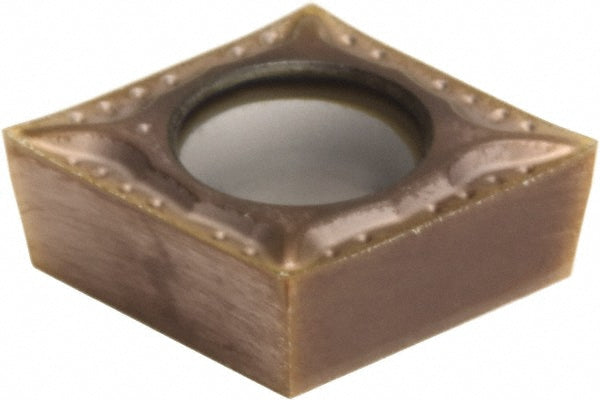

CCGT09T301MN-SI Solid Carbide Insert, Grade AC520U, TiAlN - Sumitomo 1NHW005
MFR# 1NHW005ISO/ANSI# CCGT09T301MN-SISeries CC
$12.61List $16.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC520U
MaterialSolid Carbide
CoatingTiAlN
Description
The Sumitomo 1NHW005 is a CCGT09T301MN-SI solid carbide indexable insert, grade AC520U, TiAlN coated.
Specifications
Ansi codeCCGT32.50MESI
Chip breakerMESI
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Hole diameter0.1372
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.1398
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.5
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T301MN-SI
Manufacturer gradeAC520U
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialStainless Steel; Superalloy
StandardsANSI; ISO 13399
Tolerance codeG
