Sumitomo

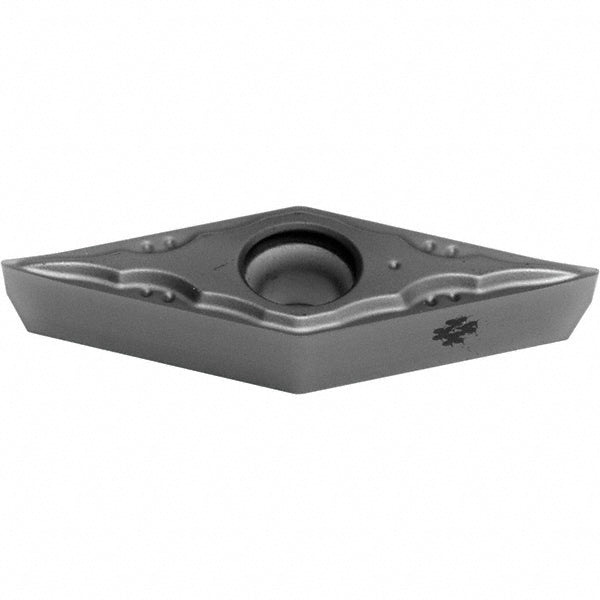

VCGT110304MN-S Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 1NT5018
MFR# 1NT5018ISO/ANSI# VCGT110304MN-SCat# VCGT221MESI-AC5015SSeries AC5000S
$15.65List $20.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 1NT5018 is a VCGT110304MN-S carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for powdered metal.
Specifications
Chip breakerMESI
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Full radiusNo
Hole diameter0.1340
Included angle35
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4370
Insert materialCarbide
Insert shapeDiamond
Insert size code221
Insert styleVCGT
Insert thickness in1/8
Iso codeVCGT110304MN-S
Manufacturers catalog numberVCGT221MESI-AC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialPowdered Metal
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
