Sumitomo

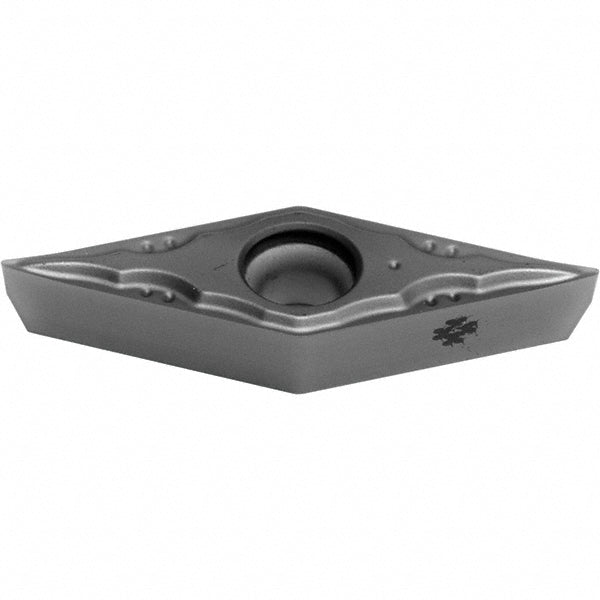

VCGT160402MN-S Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 1NT5021
MFR# 1NT5021ISO/ANSI# VCGT160402MN-SCat# VCGT330.5MESI-AC5015SSeries AC5000S
$29.47List $37.15
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 1NT5021 is a VCGT160402MN-S carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for powdered metal.
Specifications
Chip breakerMESI
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0078
Full radiusNo
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code330.5
Insert styleVCGT
Insert thickness in3/16
Iso codeVCGT160402MN-S
Manufacturers catalog numberVCGT330.5MESI-AC5015S
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialPowdered Metal
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
