Sumitomo

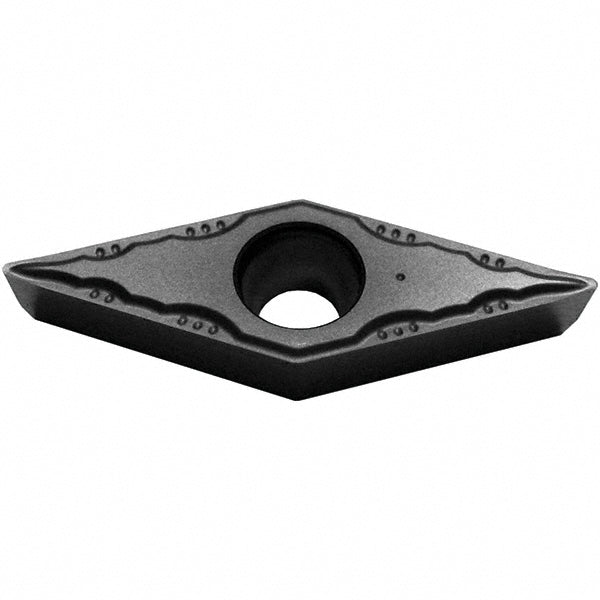

VBGT160402MN-SI Carbide Insert, Grade AC5015S, TiAlSiN - Sumitomo 1NT5046
MFR# 1NT5046ISO/ANSI# VBGT160402MN-SISeries AC5000S
$25.64List $32.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5015S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 1NT5046 is a VBGT160402MN-SI carbide indexable insert, grade AC5015S, TiAlSiN coated. Suited for powdered metal.
Specifications
Chip breakerMESI
Clearance codeB
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0078
Full radiusNo
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert handRight Hand
Insert holding methodScrew
Insert length0.6535
Insert materialCarbide
Insert shapeDiamond
Insert size code330.5
Insert styleVBGT
Insert thickness in3/16
Iso codeVBGT160402MN-SI
Manufacturer gradeAC5015S
Material gradeS10
Primary workpiece materialPowdered Metal
RakePositive
Rake angle15
Relief angle5
StandardsANSI; ISO 13399
Tolerance codeG
