Sumitomo

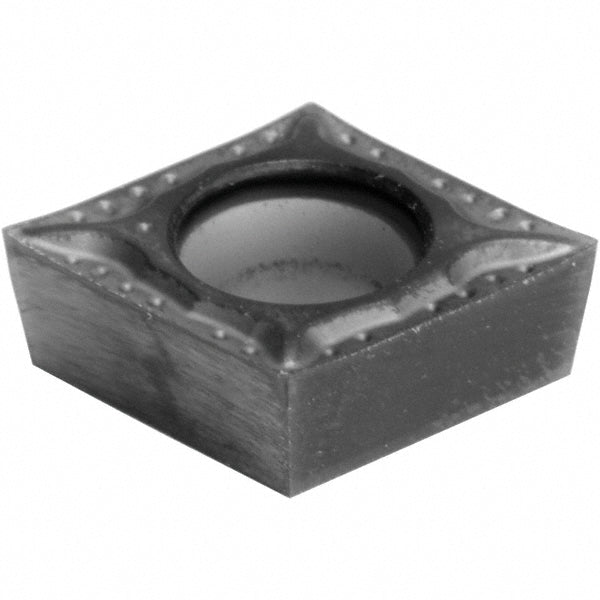

CCGT09T304MN-SI Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 1NT6007
MFR# 1NT6007ISO/ANSI# CCGT09T304MN-SICat# CCGT32.51MESIAC5025SSeries AC5000S
$12.63List $16.21
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 1NT6007 is a CCGT09T304MN-SI carbide indexable insert, grade AC5025S, TiAlSiN coated.
Specifications
Chip breakerMESI
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Full radiusNo
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.1398
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCGT
Insert thickness0.1563
Iso codeCCGT09T304MN-SI
Manufacturers catalog numberCCGT32.51MESIAC5025S
Manufacturer gradeAC5025S
Material gradeS20
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialSuperalloy
StandardsANSI; ISO 13399
Tolerance codeG
