Sumitomo

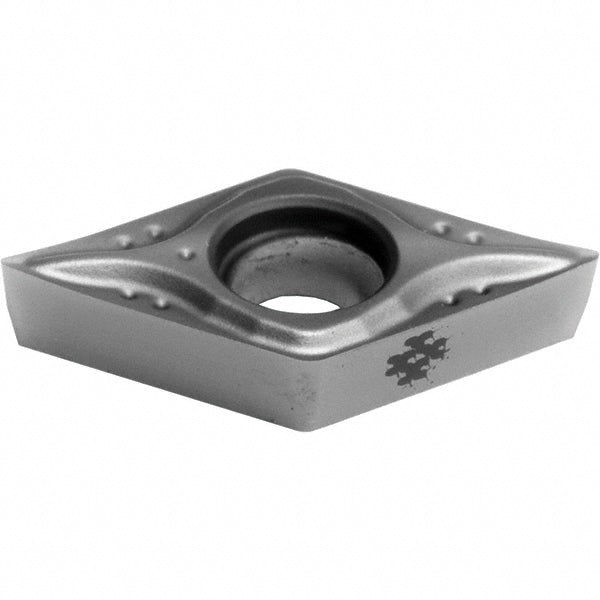

DCGT11T304MN-SI Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 1NT6013
MFR# 1NT6013ISO/ANSI# DCGT11T304MN-SICat# DCGT32.51MESIAC5025SSeries AC5000S
$17.24List $22.11
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 1NT6013 is a DCGT11T304MN-SI carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Chip breakerESI
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0156
Full radiusNo
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialCarbide
Insert shapeDiamond
Insert size code32.5
Insert styleDCGT
Insert thickness0.1563
Iso codeDCGT11T304MN-SI
Manufacturers catalog numberDCGT32.51MESIAC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
