Sumitomo

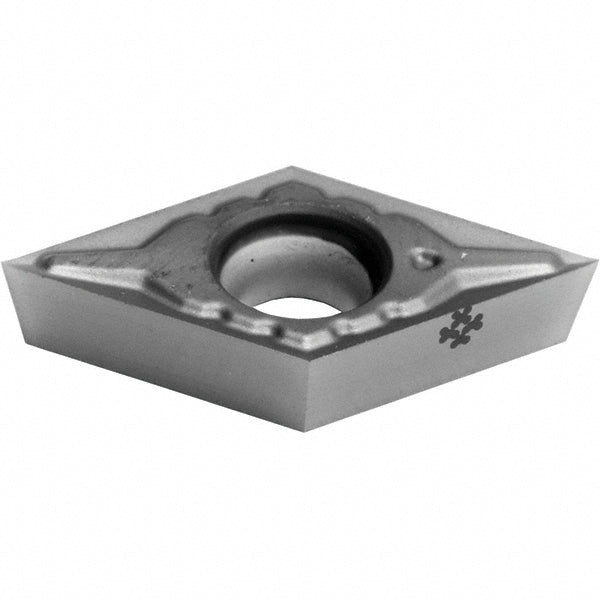

DCGT11T302MN-FC Carbide Insert, Grade AC5025S, TiAlSiN - Sumitomo 1NT6024
MFR# 1NT6024ISO/ANSI# DCGT11T302MN-FCCat# DCGT32.50.5MEFC-AC5025SSeries AC5000S
$16.11List $20.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAC5025S
MaterialCarbide
CoatingTiAlSiN
Description
The Sumitomo 1NT6024 is a DCGT11T302MN-FC carbide indexable insert, grade AC5025S, TiAlSiN coated. Suited for superalloy.
Specifications
Chip breakerEFC
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius0.0078
Full radiusNo
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4567
Insert materialCarbide
Insert shapeDiamond
Insert size code32.5
Insert styleDCGT
Insert thickness0.1563
Iso codeDCGT11T302MN-FC
Manufacturers catalog numberDCGT32.50.5MEFC-AC5025S
Manufacturer gradeAC5025S
Material gradeS20
Primary workpiece materialSuperalloy
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
