Sumitomo

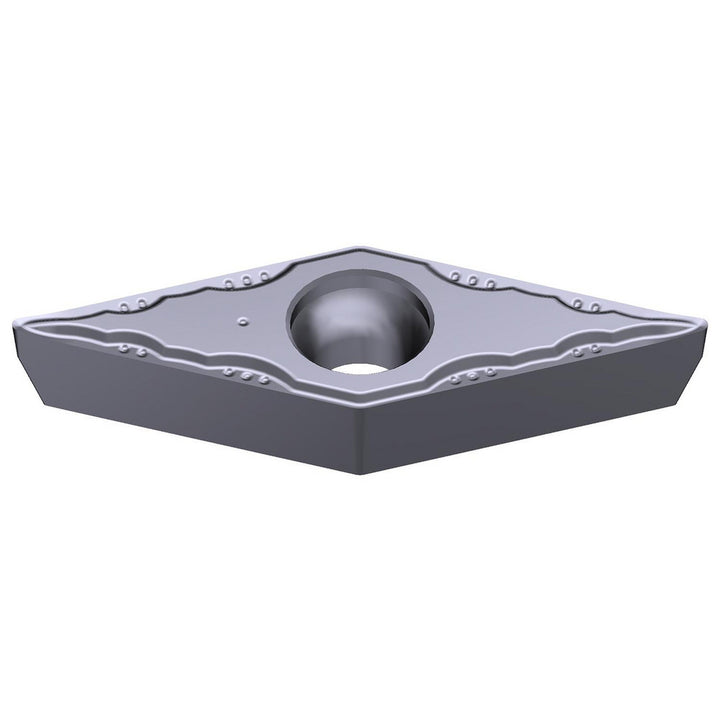

VBGT160401MN-SI Carbide Insert, Grade AC5005S, Absotech - Sumitomo 1NW2045
MFR# 1NW2045ISO/ANSI# VBGT160402Cat# VBGT330MESI-AC5005SSeries AC5005S
$25.64List $32.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeAC5005S
MaterialCarbide
CoatingAbsotech
Description
The Sumitomo 1NW2045 is a VBGT160401MN-SI carbide indexable insert, grade AC5005S, Absotech coated.
Specifications
Ansi insert codeVBGT330
Ansi size code330
Chip breakerMESI
Chip breaker operationLight Machining; Medium Machining
Clearance codeB
Coating finishAbsotech
Coating processPVD
Corner radius0.0039
Grade characteristicsSpecial, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.6535
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code330
Insert styleVBGT
Insert thickness0.1874
Iso codeVBGT160401MN-SI
Iso insert codeVBGT160402
Iso size code160402
Length range0.6500 - 0.7000
Manufacturers catalog numberVBGT330MESI-AC5005S
Manufacturer gradeAC5005S
RakePositive
Relief angle5
Side clearancePositive
Tolerance codeG
