Sumitomo

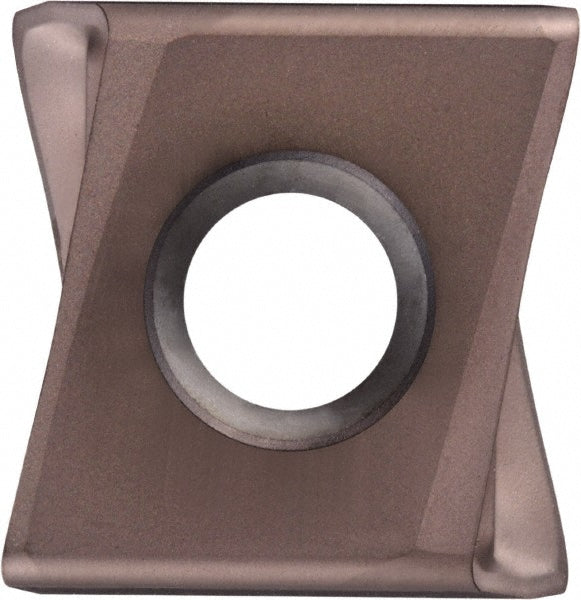

Rectangle Solid Carbide Insert, Grade ACM300, Coated - Sumitomo 1P4W014
MFR# 1P4W014
$22.63List $29.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeACM300
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 1P4W014 is a solid carbide indexable insert, grade ACM300, Coated coated. Suited for stainless steel, superalloys.
Specifications
Chip breakerG
Coating finishCoated
Coating processPVD
Corner radius (mm)0.03
Cutter series compatibilityTSX
Cutting edge effective length0.3660
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeRectangle
Insert size130608
Insert size code1306
Insert styleLNEX
Length (mm)12.60
Manufacturer gradeACM300
Material gradeMedium Grain
Maximum depth of cut (mm)12.00
Primary workpiece materialStainless Steel; Superalloys
RakeNegative
Rake angle-6
Thickness (mm)6.40
