Sumitomo

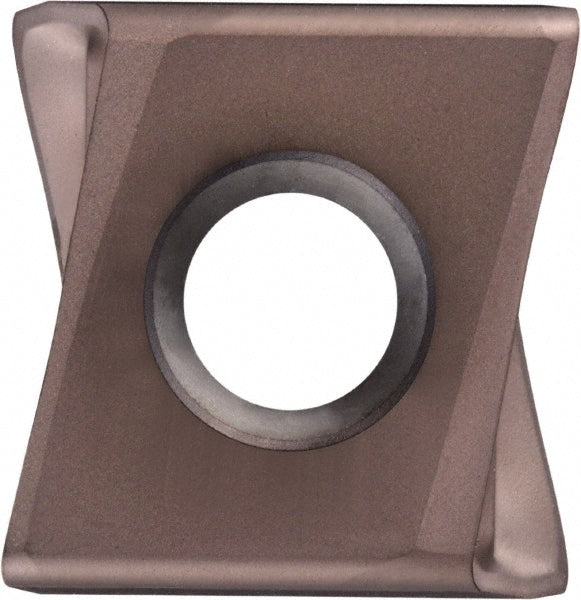

Rectangle Solid Carbide Insert, Grade ACP200, Coated - Sumitomo 1PHA014
MFR# 1PHA014
$26.02List $32.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeACP200
MaterialSolid Carbide
CoatingCoated
Description
The Sumitomo 1PHA014 is a solid carbide indexable insert, grade ACP200, Coated coated. Suited for stainless steel, steel.
Specifications
Chip breakerG
Coating finishCoated
Coating processPVD
Corner radius (mm)0.03
Cutter series compatibilityTSX
Cutting edge effective length0.3660
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeRectangle
Insert size130608
Insert size code1306
Insert styleLNEX
Length (mm)12.60
Manufacturer gradeACP200
Material gradeP15-P30
Maximum depth of cut (mm)12.00
Primary workpiece materialStainless Steel; Steel
RakeNegative
Rake angle-6
Thickness (mm)6.40
