Sumitomo

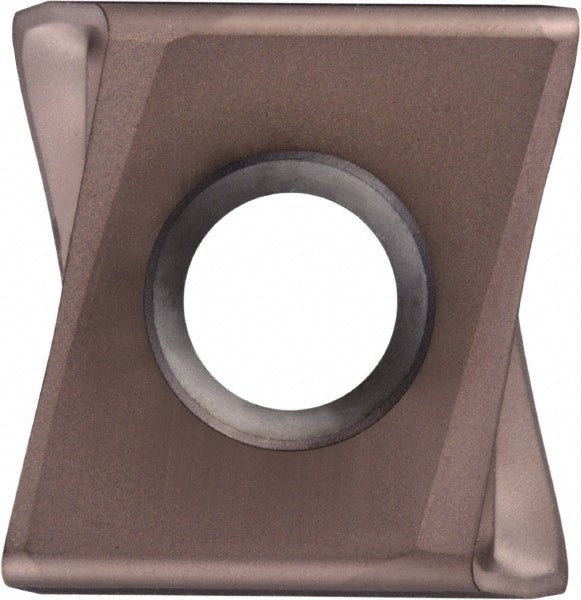

Rectangle Solid Carbide Insert, Grade ACP300 - Sumitomo 1PHB014
MFR# 1PHB014
$22.63List $29.03
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeACP300
MaterialSolid Carbide
Description
The Sumitomo 1PHB014 is a solid carbide indexable insert, grade ACP300. Suited for stainless steel, steel.
Specifications
Chip breakerG
Coating processPVD
Corner radius (mm)0.03
Cutter series compatibilityTSX
Cutting edge effective length0.3660
Insert handRight Hand
Insert materialSolid Carbide
Insert shapeRectangle
Insert size130608
Insert size code1306
Insert styleLNEX
Length (mm)12.60
Manufacturer gradeACP300
Material gradeP15-P30
Maximum depth of cut (mm)12.00
Primary workpiece materialStainless Steel; Steel
RakeNegative
Rake angle-6
Thickness (mm)6.40
