Sumitomo

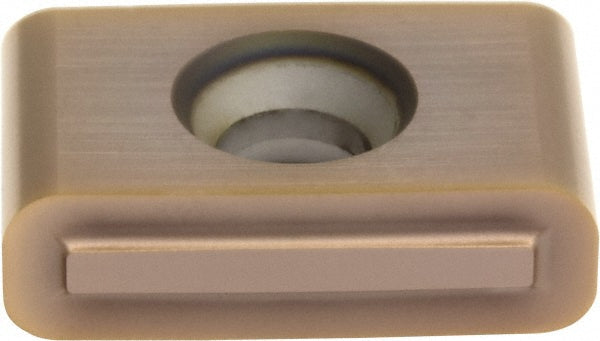

Rectangle Solid Carbide Insert, Grade K246L9 - Sumitomo 1PZCW02
MFR# 1PZCW02
$28.01List $35.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeK246L9
MaterialSolid Carbide
Description
The Sumitomo 1PZCW02 is a solid carbide indexable insert, grade K246L9.
Specifications
Corner radius0.0630
Cutter series compatibilityGFV
Cutting edge effective length0.6250
Included angle degree90
Insert materialSolid Carbide
Insert shapeRectangle
Insert size160516
Insert size code1605
Insert styleLNGX
Length0.6250
Length range0.6000 to 0.6500
Manufacturer gradeK246L9
Thickness0.1870
Thickness range0.1850 to 0.2000
Width0.3750
