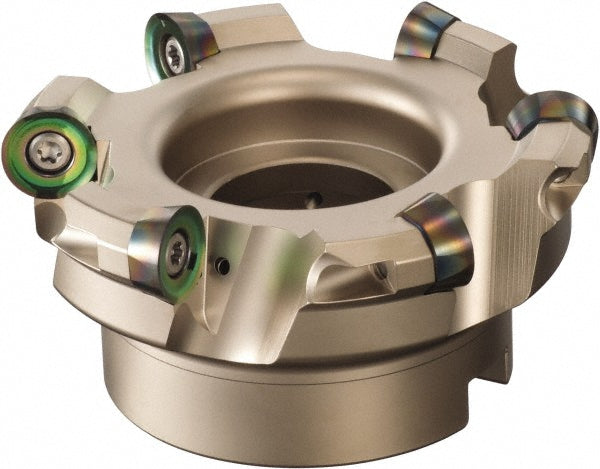

2" Indexable Milling Cutters - Sumitomo 2200W69

Sumitomo

2" Indexable Milling Cutters - Sumitomo 2200W69

MFR# 2200W69Series WaveMill

$402.42List $490.10 Save 17%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Sumitomo 2200W69 indexable milling cutters. Suited for universal. Series WaveMill.

Specifications

Arbor hole diameter0.7500
Compatible insert size codeQP.T 4312
Complete insert compatibilityQPET 4312PPENS; QPMT 4312PPEN
Coolant throughNo
Counterbore diameter0.6090
Cutter styleWRCX
Cutting diameter in2
Cutting directionRight Hand
Hub diameter in1-1/2
Insert holding methodScrew
Keyway width0.3120
Maximum cutting diameter2.0000
Maximum depth of cut0.2500
Maximum ramping angle7.50degree
Minimum cutting diameter1.5000
Number of cutter inserts4
Overall height1.7500
Primary workpiece materialUniversal
