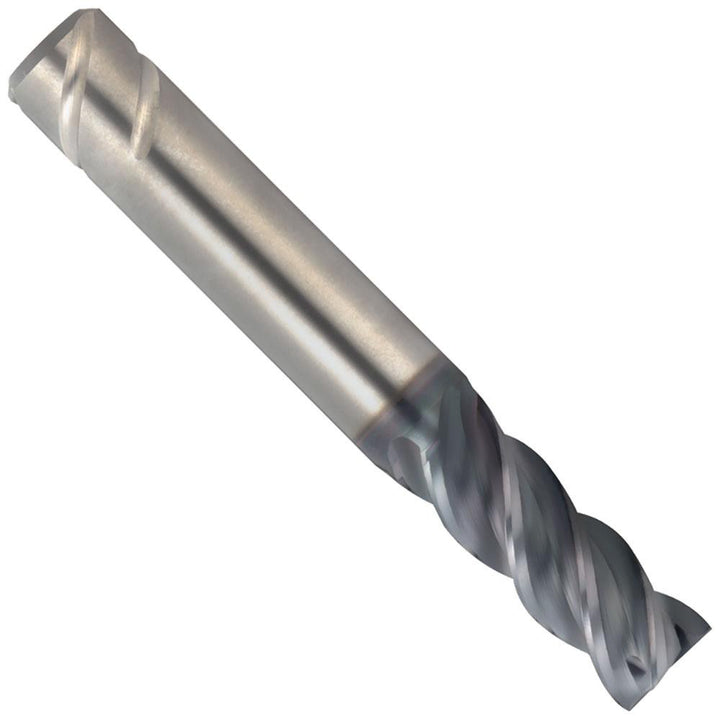

0.0787" 4-Flute Solid Carbide Square End Mill - Sumitomo 4UJF216

Sumitomo

0.0787" 4-Flute Solid Carbide Square End Mill - Sumitomo 4UJF216

MFR# 4UJF216Series GSX

$34.41List $36.51 Save 5%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide

Description

The Sumitomo 4UJF216 is a 0.0787 4-flute Solid Carbide (Fine Grain) square end mill. 0.1575 length of cut. Series GSX.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1575
Length of cut range0.1000 - 0.2000
Length typeStandard
Material gradeFine Grain
Mill diameter0.0787
Mill diameter tolerance0.000/-0.015 mm
Neck length (mm)5.00
Number of flutes4
Overall length (mm)40.00
Shank diameter (mm)4.00
Shank diameter tolerance0.000/-0.004 mm
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexNo
