Sumitomo

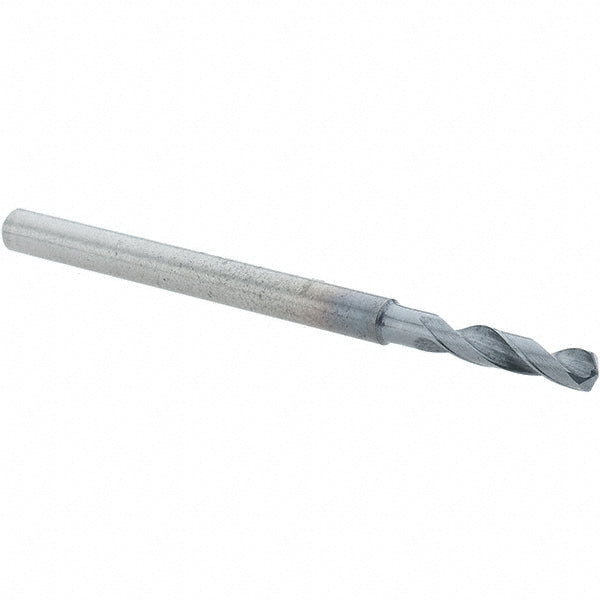

0.0984" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo 5U00006
MFR# 5U00006Series MDW-GS
$87.23List $89.34
Save 2%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo 5U00006 is a 0.0984" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.0984
Drill bit size range0.0000 to 0.1000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0204
Flute by diameter ratio2xD
Flute length0.3937
Maximum drilling depth0.2461
Number of flutes2
Overall length1.7717
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)3.00
Shank length1.2598
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
