Sumitomo

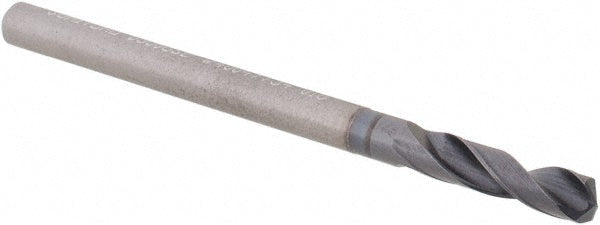

0.1181" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo 5UHY011
MFR# 5UHY011Series MDW-GS
$87.23List $89.34
Save 2%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo 5UHY011 is a 0.1181" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.1181
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0236
Flute by diameter ratio2xD
Flute length0.5118
Maximum drilling depth0.3346
Number of flutes2
Overall length1.7717
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)3.00
Shank length1.1811
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
