Sumitomo

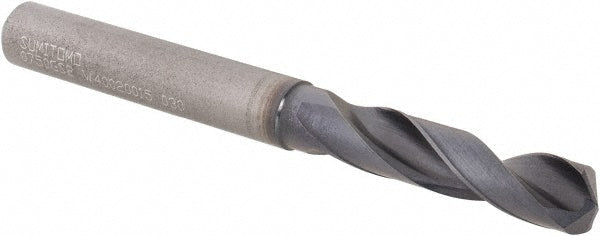

0.2953" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo 5UHY056
MFR# 5UHY056Series MDW-GS
$80.83List $96.92
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo 5UHY056 is a 0.2953" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.2953
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0612
Flute by diameter ratio2xD
Flute length1.2992
Maximum drilling depth0.8563
Number of flutes2
Overall length3.0709
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)8.00
Shank length1.6929
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
