Sumitomo

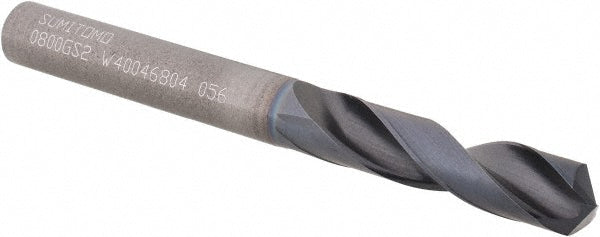

0.3150" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo 5UHY061
MFR# 5UHY061Series MDW-GS
$80.83List $96.92
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo 5UHY061 is a 0.3150" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.3150
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0652
Flute by diameter ratio2xD
Flute length1.4173
Maximum drilling depth0.9449
Number of flutes2
Overall length3.0709
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)8.00
Shank length1.6535
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
