Sumitomo

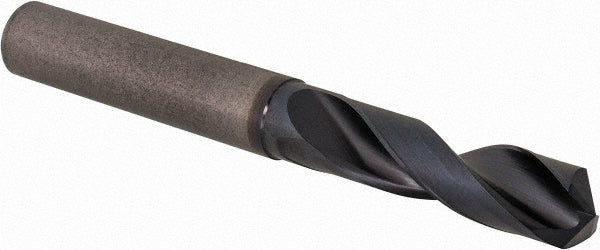

0.4134" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo 5UHY086
MFR# 5UHY086Series MDW-GS
$157.76List $189.17
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo 5UHY086 is a 0.4134" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.4134
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0856
Flute by diameter ratio2xD
Flute length1.6142
Maximum drilling depth0.9941
Number of flutes2
Overall length3.6614
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)11.00
Shank length1.9685
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
