Sumitomo

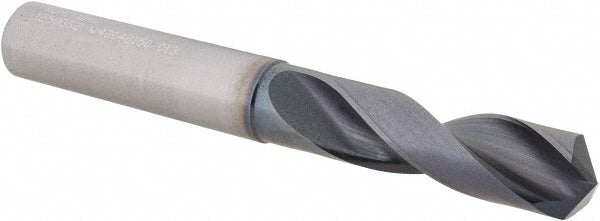

0.4921" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo 5UHY106
MFR# 5UHY106Series MDW-GS
$213.37List $255.86
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo 5UHY106 is a 0.4921" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.4921
Drill bit size range0.4500 to 0.5000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.1019
Flute by diameter ratio2xD
Flute length1.8504
Maximum drilling depth1.1122
Number of flutes2
Overall length3.9370
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)13.00
Shank length2.0079
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
