Sumitomo

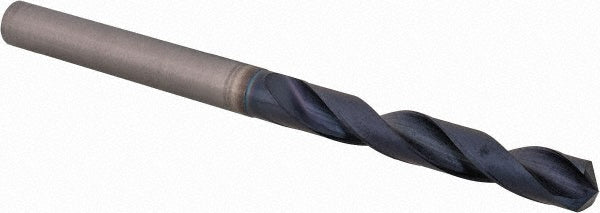

0.2362" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo 5UHY182
MFR# 5UHY182Series MDW-GS
$81.71List $97.98
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo 5UHY182 is a 0.2362" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size0.2362
Drill bit size range0.2000 - 0.2500
Drill point angle degrees135
Drill point length0.0489
Flute by diameter ratio4xD
Flute length1.6142
Number of flutes2
Overall length3.1890
Primary workpiece materialCast Iron; Steel
Shank diameter0.2362
Shank length (mm)40.00
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
