Sumitomo

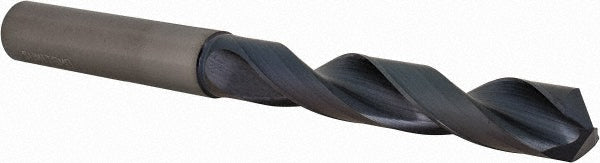

0.4921" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo 5UHY247
MFR# 5UHY247Series MDW-GS
$224.55List $269.27
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo 5UHY247 is a 0.4921" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size0.4921
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Drill point length0.1019
Flute by diameter ratio4xD
Flute length2.9921
Number of flutes2
Overall length5.3937
Primary workpiece materialCast Iron; Steel
Shank diameter0.5118
Shank length (mm)59.00
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
