Sumitomo

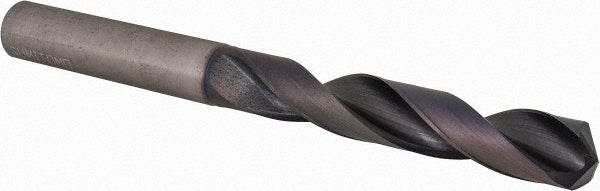

0.5512" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo 5UHY262
MFR# 5UHY262Series MDW-GS
$224.55List $269.27
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo 5UHY262 is a 0.5512" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size0.5512
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Drill point length0.1142
Flute by diameter ratio4xD
Flute length3.3858
Number of flutes2
Overall length5.7874
Primary workpiece materialCast Iron; Steel
Shank diameter0.5512
Shank length (mm)61.00
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
