Sumitomo

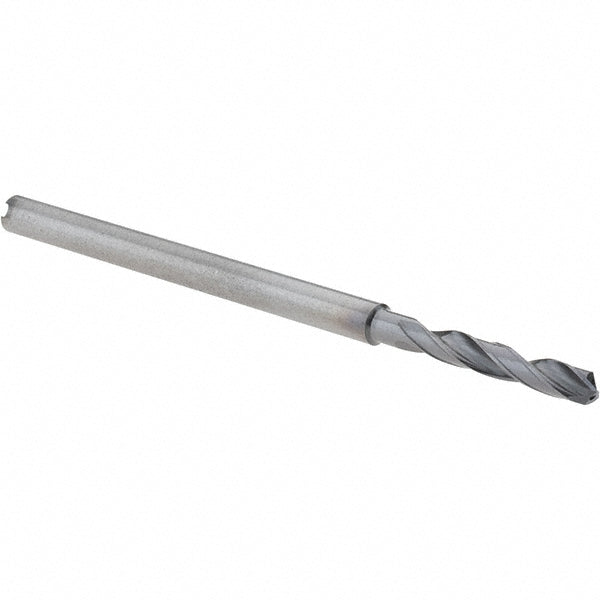

0.1260" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo 5VHY008
MFR# 5VHY008Series MDW-HGS
$89.28List $107.06
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo 5VHY008 is a 0.1260" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coating finishCoated
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size0.1260
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0261
Flute by diameter ratio3xD
Flute length0.7874
Maximum drilling depth0.6260
Number of flutes2
Number of margins2
Overall length2.8346
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter (mm)4.00
Shank length1.9685
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
