Sumitomo

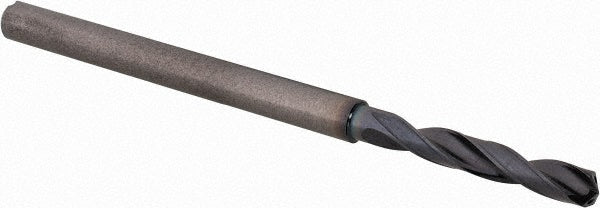

0.1614" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo 5VHY017
MFR# 5VHY017Series MDW-HGS
$89.28List $107.06
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo 5VHY017 is a 0.1614" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coating finishCoated
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size0.1614
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0334
Flute by diameter ratio3xD
Flute length0.9843
Maximum drilling depth0.7756
Number of flutes2
Number of margins2
Overall length3.1496
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter (mm)5.00
Shank length2.0866
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
