Sumitomo

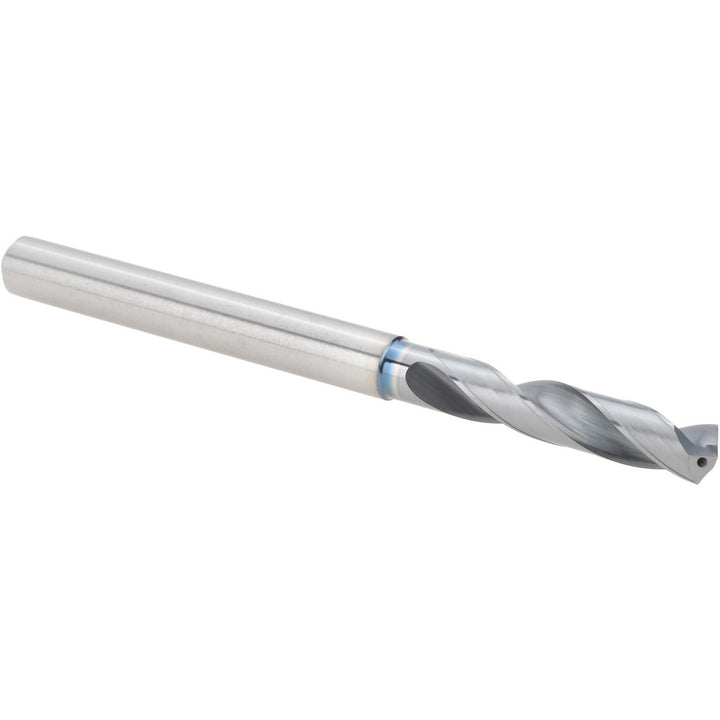

0.2520" Solid Carbide Screw Machine Drill Bit, 135° point - Sumitomo 5VHY040
MFR# 5VHY040Series MDW-HGS
$102.54List $122.96
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo 5VHY040 is a 0.2520" Solid Carbide Screw Machine drill bit, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size0.2520
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0522
Flute by diameter ratio3xD
Flute length1.2795
Maximum drilling depth0.9528
Number of flutes2
Number of margins2
Overall length3.4646
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.2756
Shank length2.0866
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
