Sumitomo

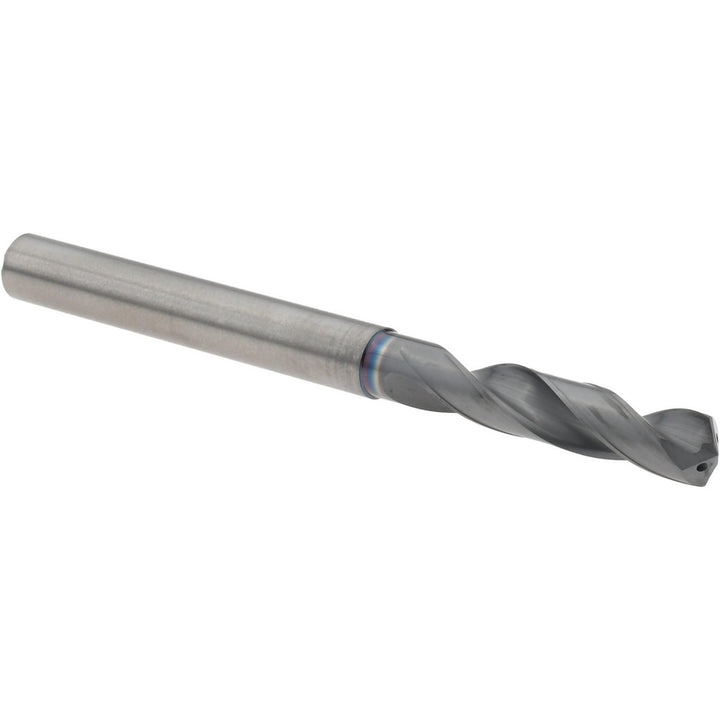

0.2953" Solid Carbide Screw Machine Drill Bit, 135° point - Sumitomo 5VHY051
MFR# 5VHY051Series MDW-HGS
$95.85List $117.15
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo 5VHY051 is a 0.2953" Solid Carbide Screw Machine drill bit, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size0.2953
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0612
Flute by diameter ratio3xD
Flute length1.4764
Maximum drilling depth1.0984
Number of flutes2
Number of margins2
Overall length3.7008
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.3150
Shank length2.1260
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
