Sumitomo

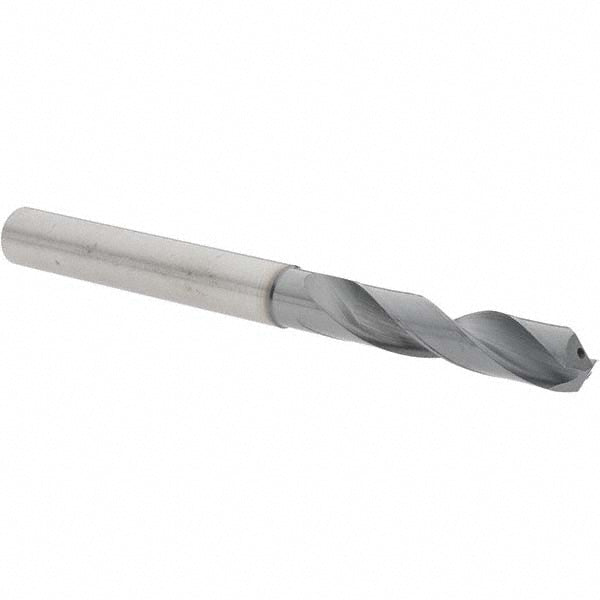

0.3346" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo 5VHY061
MFR# 5VHY061Series MDW-HGS
$148.67List $178.28
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo 5VHY061 is a 0.3346" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coating finishCoated
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size0.3346
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0693
Flute by diameter ratio3xD
Flute length1.6732
Maximum drilling depth1.2441
Number of flutes2
Number of margins2
Overall length3.9370
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter (mm)9.00
Shank length2.1654
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
