Sumitomo

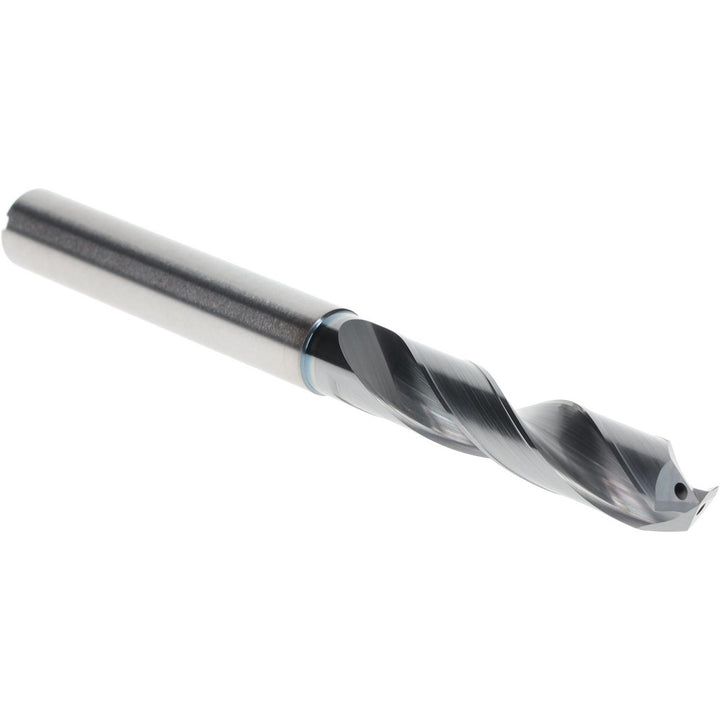

0.3740" Solid Carbide Screw Machine Drill Bit, 135° point - Sumitomo 5VHY071
MFR# 5VHY071Series MDW-HGS
$148.67List $178.28
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo 5VHY071 is a 0.3740" Solid Carbide Screw Machine drill bit, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size0.3740
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0775
Flute by diameter ratio3xD
Flute length1.8701
Maximum drilling depth1.3898
Number of flutes2
Number of margins2
Overall length4.1732
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.3937
Shank length2.2047
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
