Sumitomo
0.4134" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo 5VHY081
MFR# 5VHY081Series MDW-HGS
$202.71List $243.07
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description

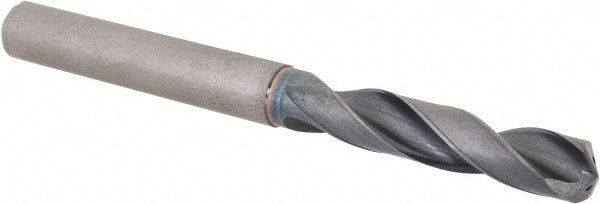

The Sumitomo 5VHY081 is a 0.4134" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coating finishCoated
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size0.4134
Drill bit size range0.4000 to 0.4500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0856
Flute by diameter ratio3xD
Flute length2.0669
Maximum drilling depth1.5354
Number of flutes2
Number of margins2
Overall length4.5669
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter (mm)11.00
Shank length2.4016
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
