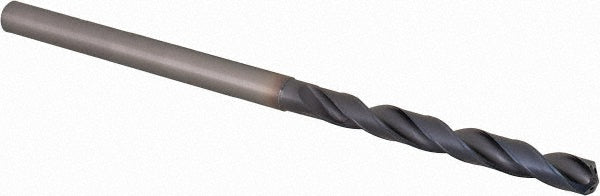

0.1890" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo 5VHY160

Sumitomo

0.1890" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo 5VHY160

MFR# 5VHY160Series MDW-HGS

$105.51List $126.52 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Sumitomo 5VHY160 is a 0.1890" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.

Specifications

Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size0.1890
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Drill point length0.0391
Flute by diameter ratio5xD
Flute length1.7323
Number of flutes2
Overall length3.8583
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.1969
Shank length2.0472
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
