Sumitomo

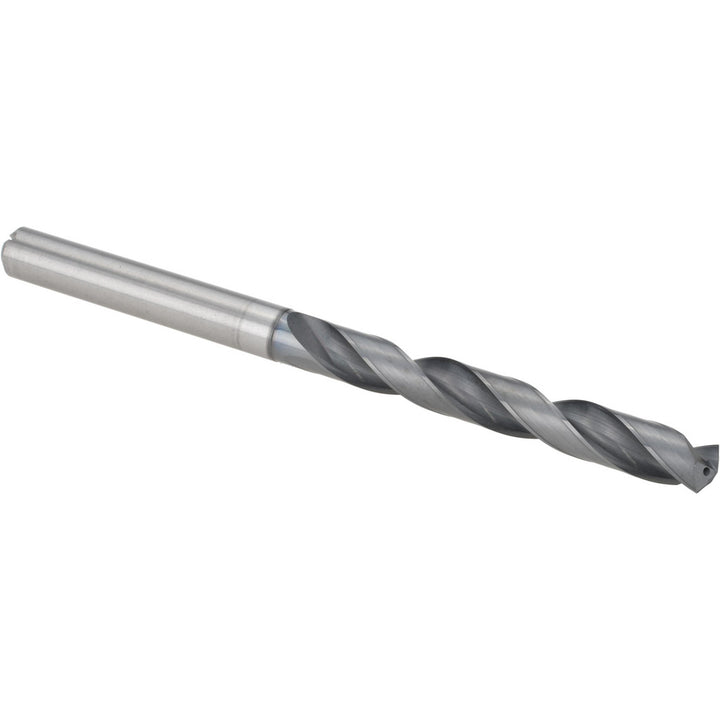

0.3543" Solid Carbide Drill Bit, Multi-layer, 135° point - Sumitomo 5VHY202
MFR# 5VHY202Series MDW-HGS
$232.24List $237.87
Save 2%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Sumitomo 5VHY202 is a 0.3543" Solid Carbide drill bit with a Multi-layer finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coating finishMulti-layer
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.3543
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Drill point length0.0734
Flute by diameter ratio5xD
Flute length2.8346
Number of flutes2
Overall length5
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.3543
Shank length2.1654
Shank typeStraight
Tool applicationMetal Cutting
Web configurationTapered
