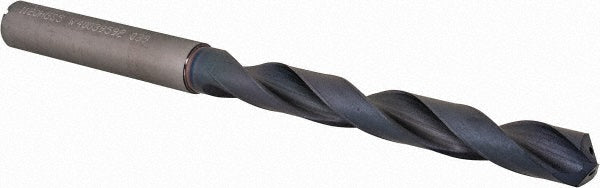

0.4409" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo 5VHY224

Sumitomo

0.4409" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo 5VHY224

MFR# 5VHY224Series MDW-HGS

$239.68List $287.41 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Sumitomo 5VHY224 is a 0.4409" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.

Specifications

Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size0.4409
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Drill point length0.0913
Flute by diameter ratio5xD
Flute length3.6220
Number of flutes2
Overall length6.2205
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.4724
Shank length2.4409
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
