Sumitomo

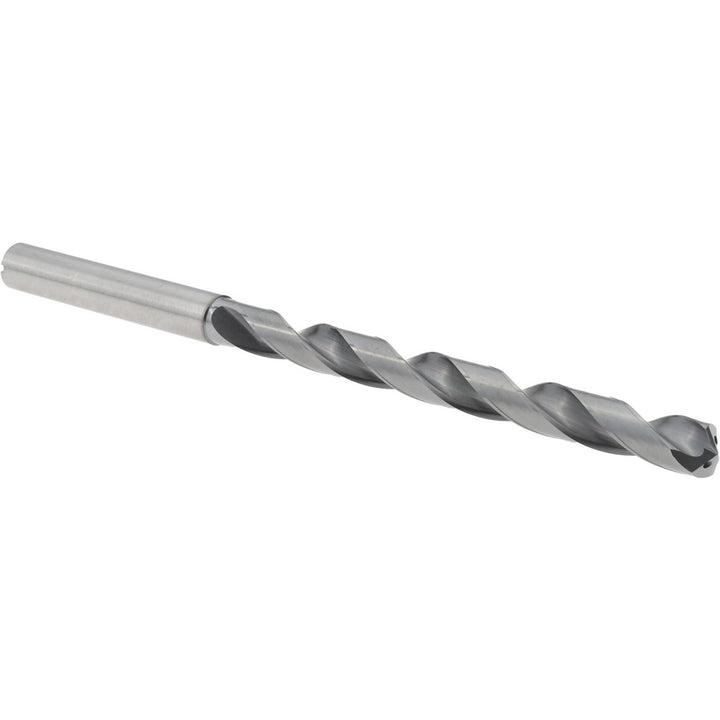

0.2362" Solid Carbide Drill Bit, DEX, 135° point - Sumitomo 5VHY308
MFR# 5VHY308Series MDW-HGS
$152.67List $179.89
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingDEX
Description
The Sumitomo 5VHY308 is a 0.2362" Solid Carbide drill bit with a DEX finish, 135° point. Series MDW-HGS.
Specifications
Coating finishDEX
Coolant throughYes
Drill bit diameter tolerance+0.00000 to -0.00087 in
Drill bit size0.2362
Drill point angle degrees135
Flute length2.5984
Flute length x diameter ratio8xD
Flute typeJ-Flute
Overall length4-2/4
Shank diameter0.2362
Shank length2.0472
Shank typeStraight-Cylindrical
Threaded shankNo
Tool materialSolid Carbide
Web configurationTapered
