Sumitomo

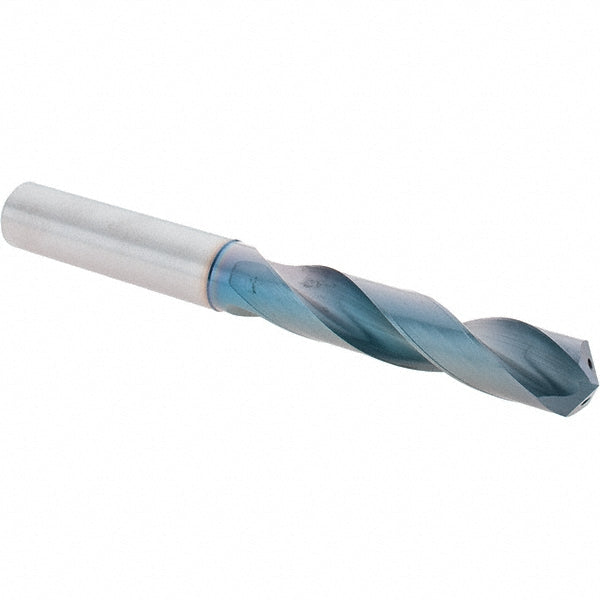

0.6890" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo 5VHY499
MFR# 5VHY499Series MDW-HGS
$546.12List $654.87
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo 5VHY499 is a 0.6890" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coating finishCoated
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size0.6890
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle135
Drill point length0.1427
Flute by diameter ratio3xD
Flute length3.4449
Maximum drilling depth2.5551
Number of flutes2
Number of margins2
Overall length6.2205
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter (mm)17.00
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
