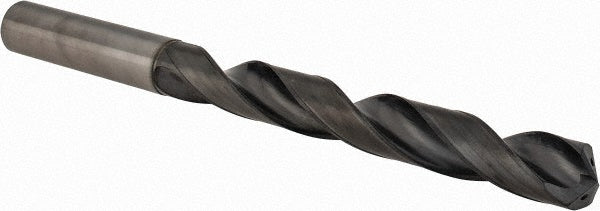

0.6693" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo 5VHY534

Sumitomo

0.6693" Solid Carbide Drill Bit, TiAlCr; TiSi, 135° point - Sumitomo 5VHY534

MFR# 5VHY534Series MDW-HGS

$649.69List $779.07 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Sumitomo 5VHY534 is a 0.6693" Solid Carbide drill bit with a TiAlCr; TiSi finish, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.

Specifications

Coolant throughYes
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlCr; TiSi
Drill bit materialSolid Carbide
Drill bit size0.6693
Drill bit size range0.6500+
Drill point angle degrees135
Drill point length0.1386
Flute by diameter ratio5xD
Flute length5.3543
Number of flutes2
Overall length7.9921
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.6693
Shank length0.6693
Shank typeStraight-Cylindrical
Tool applicationMetal Cutting
Web configurationTapered
