Sumitomo

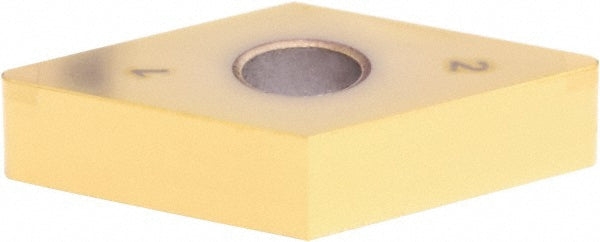

2NC-DNGA150412 Polycrystalline Cubic Boron Nitride Insert, Grade BNC300, TiN - Sumitomo U100007
MFR# U100007ISO/ANSI# 2NC-DNGA150412Series DNG
$78.96List $99.51
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBNC300
MaterialPolycrystalline Cubic Boron Nitride
CoatingTiN
Description
The Sumitomo U100007 is a 2NC-DNGA150412 polycrystalline cubic boron nitride indexable insert, grade BNC300, TiN coated. Suited for cast iron, superalloy.
Specifications
Ansi code2NCDNGA433
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in3/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.0787
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code433
Insert style2NC-DNGA
Insert thickness in3/16
Iso code2NC-DNGA150412
Manufacturer gradeBNC300
Maximum depth of cut0.0150
Number of cutting edges2
Primary workpiece materialCast Iron; Superalloy
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
