Sumitomo

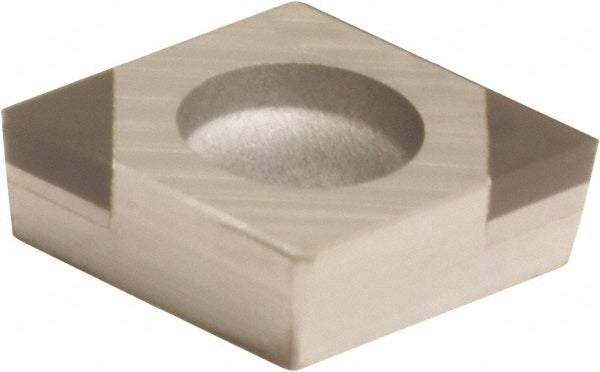

2NU-CCGW09T304W Polycrystalline Cubic Boron Nitride Insert, Grade BN700 - Sumitomo U100017
MFR# U100017ISO/ANSI# 2NU-CCGW09T304WSeries CCG
$74.93List $96.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBN700
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo U100017 is a 2NU-CCGW09T304W polycrystalline cubic boron nitride indexable insert, grade BN700. Suited for cast iron, hard material, superalloy.
Specifications
Ansi code2NUCCGA32.51W
Chip breakerW
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.0945
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code32.5
Insert style2NU-CCGA
Insert thickness in5/32
Iso code2NU-CCGW09T304W
Manufacturer gradeBN700
Maximum depth of cut0.0150
Number of cutting edges2
Primary workpiece materialCast Iron; Hard Material; Superalloy
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
