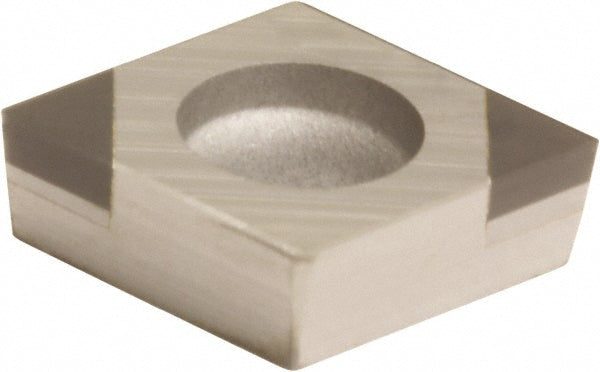

2NU-CCGW09T308 Polycrystalline Cubic Boron Nitride Insert, Grade BN350 - Sumitomo U100018

Sumitomo

2NU-CCGW09T308 Polycrystalline Cubic Boron Nitride Insert, Grade BN350 - Sumitomo U100018

MFR# U100018ISO/ANSI# 2NU-CCGW09T308Series CCG

$70.24List $90.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBN350
MaterialPolycrystalline Cubic Boron Nitride

Description

The Sumitomo U100018 is a 2NU-CCGW09T308 polycrystalline cubic boron nitride indexable insert, grade BN350. Suited for cast iron, hardened steel, superalloy.

Specifications

Ansi code2NUCCGA32.52
Chip breakerA
Clearance codeC
Coating processUncoated
Corner radius in1/32
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.0945
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code32.5
Insert style2NU-CCGA
Insert thickness in5/32
Iso code2NU-CCGW09T308
Manufacturer gradeBN350
Maximum depth of cut0.0150
Number of cutting edges2
Primary workpiece materialCast Iron; Hardened Steel; Superalloy
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
