Sumitomo

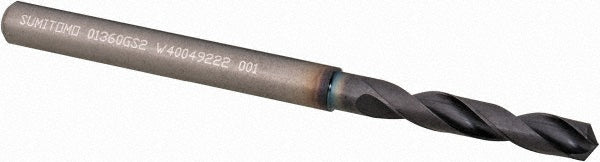

0.1360" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101019
MFR# U101019Series MDW-GS
$62.71List $75.32
Save 16%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo U101019 is a 0.1360" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.1360
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0282
Flute by diameter ratio2xD
Flute length0.7480
Maximum drilling depth0.5443
Number of flutes2
Overall length2.1260
Primary workpiece materialCast Iron; Steel
Shank length1.2992
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
