Sumitomo

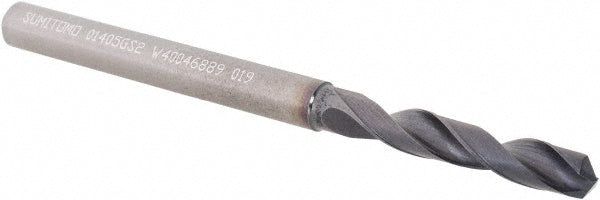

0.1405" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101020
MFR# U101020Series MDW-GS
$65.94List $79.06
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo U101020 is a 0.1405" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.1405
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0291
Flute by diameter ratio2xD
Flute length0.8268
Maximum drilling depth0.6159
Number of flutes2
Overall length2.1260
Primary workpiece materialCast Iron; Steel
Shank length1.2992
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
