Sumitomo

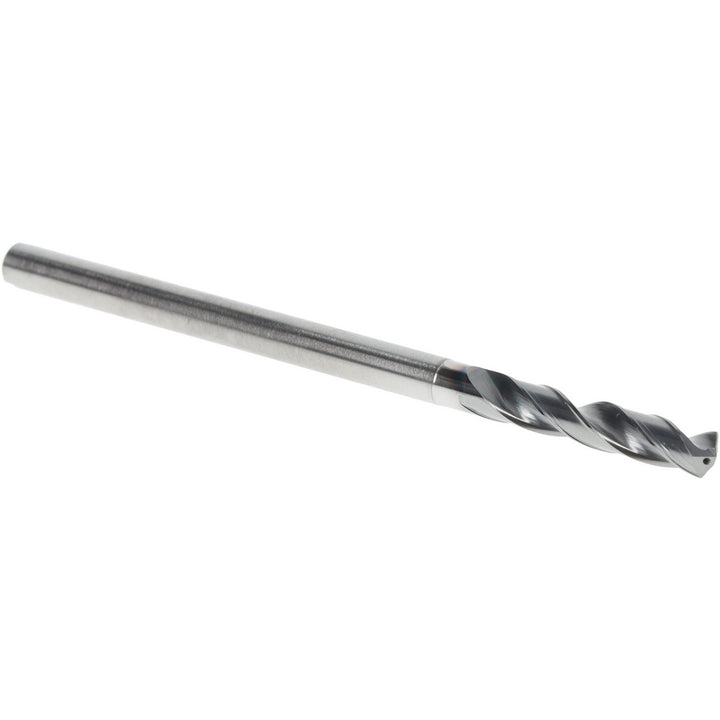

5/32" Solid Carbide Screw Machine Drill Bit, 135° point - Sumitomo U101028
MFR# U101028Series MDW-HGS
$118.12List $120.98
Save 2%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/32
Flutes2
Description
The Sumitomo U101028 is a 5/32" Solid Carbide Screw Machine drill bit, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size in5/32
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0326
Flute by diameter ratio3xD
Flute length0.8858
Maximum drilling depth0.6515
Number of flutes2
Number of margins2
Overall length2.8346
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.1562
Shank length1.8898
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
