Sumitomo

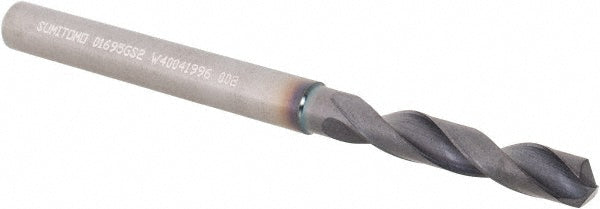

0.1695" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101034
MFR# U101034Series MDW-GS
$87.23List $89.34
Save 2%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo U101034 is a 0.1695" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.1695
Drill bit size range0.1500 to 0.2000
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0354
Flute by diameter ratio2xD
Flute length0.9055
Maximum drilling depth0.6510
Number of flutes2
Overall length2.4016
Primary workpiece materialCast Iron; Steel
Shank length1.4173
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
