Sumitomo

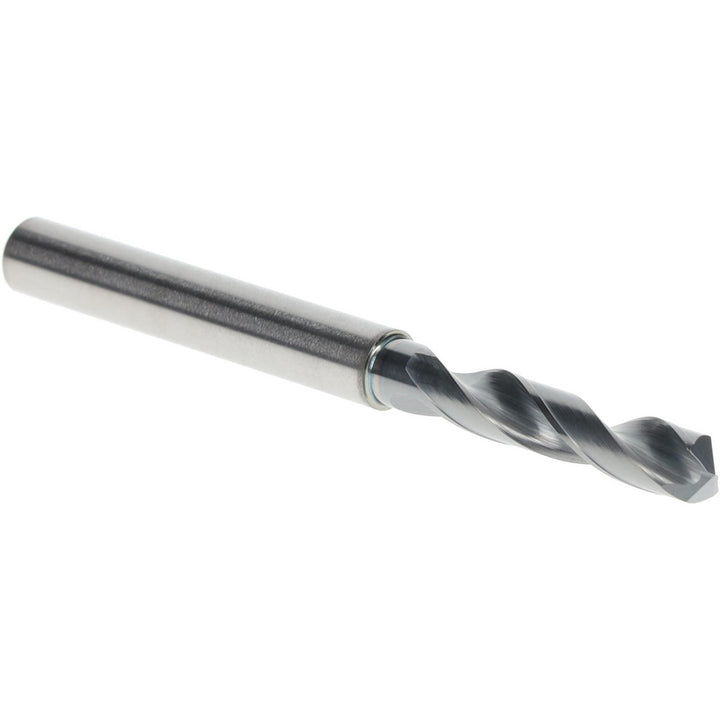

#7 Solid Carbide Screw Machine Drill Bit, 135° point - Sumitomo U101048
MFR# U101048Series MDW-GS
$87.23List $89.34
Save 2%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo U101048 is a #7 Solid Carbide Screw Machine drill bit, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.2010
Drill bit size range0.2000 to 0.2500
Drill bit size wire#7
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0416
Flute by diameter ratio2xD
Flute length0.9843
Maximum drilling depth0.6825
Number of flutes2
Overall length2.5591
Primary workpiece materialCast Iron; Steel
Shank diameter0.2344
Shank length1.4961
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
