Sumitomo

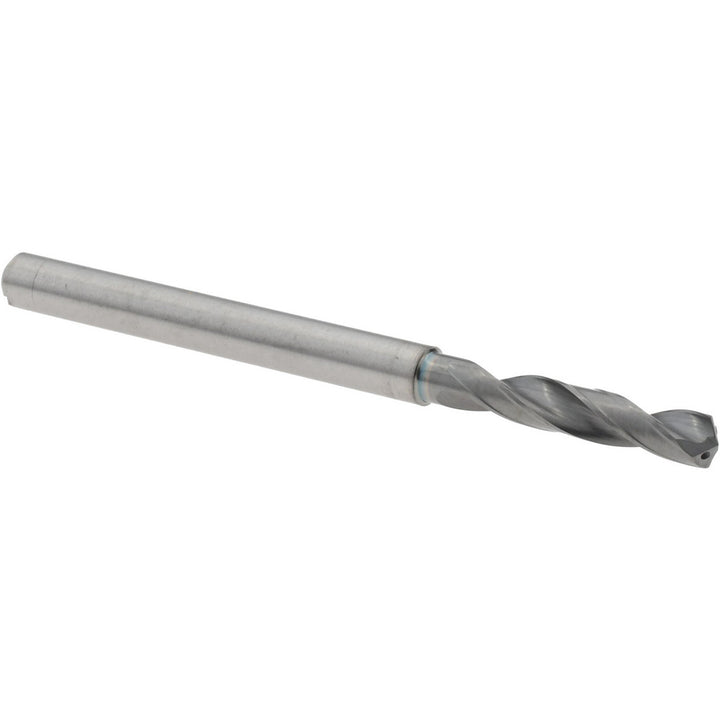

#7 Solid Carbide Screw Machine Drill Bit, 135° point - Sumitomo U101050
MFR# U101050Series MDW-HGS
$118.12List $120.98
Save 2%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Sumitomo U101050 is a #7 Solid Carbide Screw Machine drill bit, 135° point. Suited for cast iron, stainless steel, steel. Series MDW-HGS.
Specifications
Coolant throughYes
Drill bit diameter toleranceh8
Drill bit size0.2010
Drill bit size range0.2000 to 0.2500
Drill bit size wire#7
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0416
Flute by diameter ratio3xD
Flute length1.0827
Maximum drilling depth0.7812
Number of flutes2
Number of margins2
Overall length3.2283
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter0.2344
Shank length2.0866
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
