Sumitomo

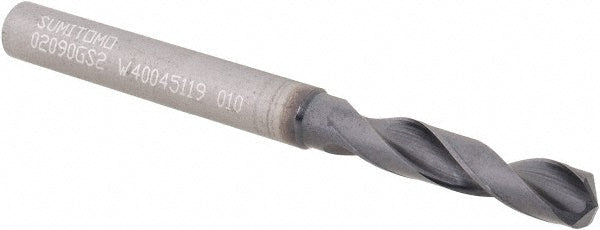

0.2090" Solid Carbide Screw Machine Drill Bit, Coated, 135° point - Sumitomo U101055
MFR# U101055Series MDW-GS
$65.94List $79.06
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Sumitomo U101055 is a 0.2090" Solid Carbide Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. Series MDW-GS.
Specifications
Coating finishCoated
Coolant throughNo
Drill bit diameter toleranceh8
Drill bit size0.2090
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle135
Drill point length0.0433
Flute by diameter ratio2xD
Flute length0.9843
Maximum drilling depth0.6707
Number of flutes2
Overall length2.5591
Primary workpiece materialCast Iron; Steel
Shank length1.4961
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
Web configurationTapered
